Learning how to check alternator performance can keep a weak battery from sending you to a parts store unnecessarily. The alternator recharges the battery while the engine runs and supplies power for the lights, ignition, fuel system, blower motor, and control modules. A multimeter, basic safety gear, and a few minutes can tell you whether the charging system is working, undercharging, or producing excessive voltage.
This test does not prove that every alternator component is healthy. A failing diode, worn brush, loose belt, or intermittent internal connection can behave normally during a quick driveway check. Still, voltage testing is a useful first diagnosis before paying for a battery or alternator.
Tools, preparation, and safety

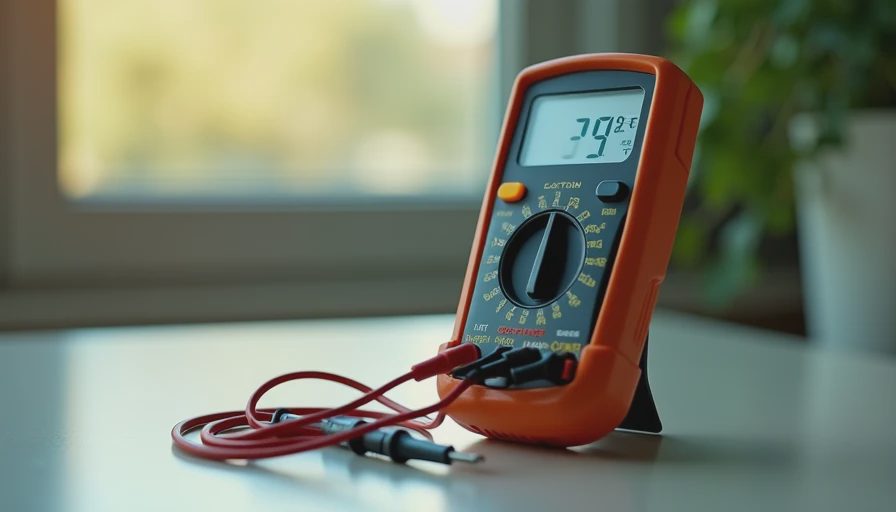

For how to check alternator output, gather a digital multimeter with DC voltage settings, safety glasses, gloves, and a flashlight. A basic meter costing roughly $15 to $40 is sufficient. You do not need to remove the alternator or disconnect the battery. If possible, have a battery that is charged enough to start the engine; a deeply discharged battery can distort the first readings.
Park on level ground, set the parking brake, select Park or Neutral, and keep loose clothing, hair, and tools away from the serpentine belt and pulleys. Do not place meter leads near the belt while the engine is running. Keep the meter body away from the exhaust manifold and cooling fan. Electric fans can start without warning, even on some vehicles after the ignition is switched off.
Before testing, inspect the battery terminals. They should be tight and free of heavy white or green corrosion. Look at the serpentine belt for cracks, missing ribs, glazing, or slack. A slipping belt can imitate alternator failure, especially when the headlights or rear defroster are switched on.
How to check alternator voltage step by step
- Turn the ignition off and let the vehicle sit for several minutes. Set the multimeter to DC volts. On a manual-ranging meter, select the 20-volt range.
- Touch the red probe to the battery positive terminal and the black probe to the negative terminal or a clean engine ground. Record the reading. A healthy, rested battery commonly measures about 12.4 to 12.7 volts. Around 12.2 volts indicates partial discharge, while a reading near 12.0 volts or lower means the battery needs charging before you judge the alternator.
- Start the engine and let it idle. Repeat the measurement at the battery posts, not on the cable clamps alone. Many conventional charging systems show approximately 13.5 to 14.8 volts at idle. A reading that stays close to the original battery voltage suggests the alternator is not charging, although wiring, a fuse, a belt, or a control signal could be responsible.
- Increase engine speed to roughly 1,500 to 2,000 rpm for a few seconds. The voltage should remain reasonably stable rather than climbing sharply. Switch on the headlights, blower motor at high speed, rear defroster, and heated seats if equipped. The alternator should maintain charging voltage or recover quickly after a brief drop.
- Compare the battery reading with a measurement at the alternator output terminal, if the terminal is safely accessible. A significant difference, such as 14.2 volts at the alternator but only 13.2 volts at the battery, points toward resistance in the positive cable, a fusible link, or a ground connection. Do not short the output terminal against the alternator housing.
Reading the results correctly
Knowing how to check alternator results means looking at patterns, not one number. A battery reading of 12.6 volts with the engine off and 14.1 volts running is generally encouraging. A battery at 12.6 volts that falls to 12.3 volts with the engine running indicates that the vehicle is using stored battery power instead of receiving adequate charge.
Voltage above about 15 volts is also a problem on many conventional systems. It can indicate a faulty voltage regulator and can damage bulbs, electronic modules, or the battery. Stop the test if the voltage continues rising, the battery smells strongly of sulfur, or the case becomes hot or swollen.
A normal voltage reading does not eliminate every alternator fault. A bad diode can create alternating-current ripple, causing flickering lights, radio interference, or rough electronic behavior. If your meter has an AC voltage range, measure across the battery while the engine runs. A very low reading is expected; a result around 0.3 volts AC or higher deserves further testing, although meter quality and vehicle design affect this check.
Smart charging systems and warning signs
Modern vehicles often use computer-controlled or smart charging. Their voltage may deliberately move between roughly 12.5 and 15 volts depending on battery state, temperature, acceleration, and electrical load. On these vehicles, a single idle measurement can be misleading. Use the service information for the exact year, make, and engine, and pay attention to the battery warning lamp, scan-tool data, and charging-system fault codes.
Common symptoms strengthen the diagnosis. A battery light, dimming headlights, slow power windows, repeated dead batteries, belt squeal, or a whining noise near the alternator all deserve inspection. A battery light means the vehicle has detected a charging-system problem; it does not automatically identify the alternator as the failed part.
Common mistakes and the next repair step
Do not test by removing the negative battery cable while the engine runs. That old method can create voltage spikes and damage sensitive electronics. Do not condemn an alternator because the battery is discharged, and do not install a new battery without finding out why the old one went flat.
If testing shows low output, inspect the belt tensioner, battery terminals, engine ground strap, alternator fuse, and wiring before ordering parts. Many replacement alternators cost approximately $150 to $500 for the part, with labor potentially adding $200 to $700 depending on access and vehicle design. A loose ground cable can cost almost nothing to repair, so diagnosis comes first.
For how to check alternator concerns that appear only when hot, repeat the test after a normal drive and watch the meter while electrical loads cycle. If the readings change sharply, record the conditions. That information helps a shop reproduce the failure and prevents a parts-swapping repair.
A careful how to check alternator routine starts with a charged battery, confirms belt and cable condition, measures engine-off and running voltage, and tests the system under load. Write down every reading. Clear measurements turn a vague no-start problem into a repair decision based on evidence.
